Choose the wetblast machine that is right for you

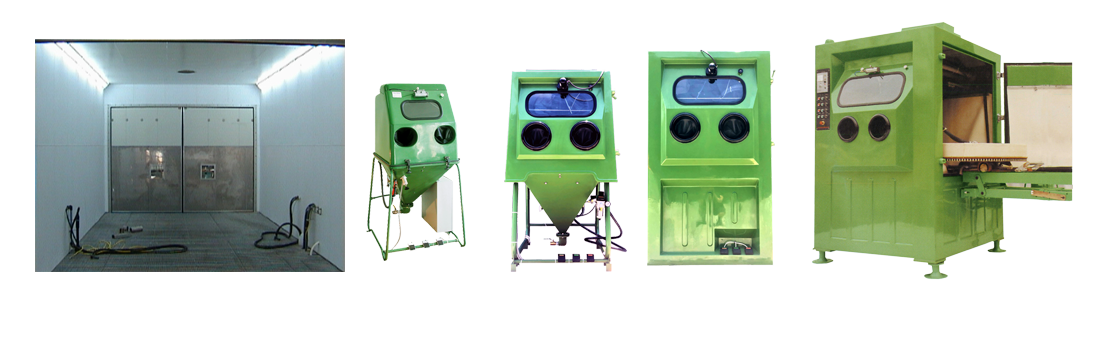

From left to right: Neptune (walk-in blast room), Mercury, Comet, Mars and Titan

If you don’t see something here that suits your needs we can custom design something that will

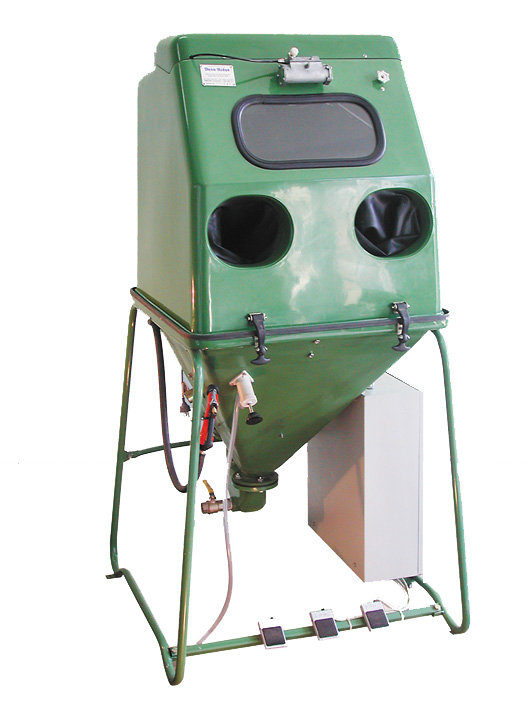

The MERCURY wetblast unit

This little machine is best suited for smaller components and typical industry applications are the diesel fuel pump industry, Jewellery manufacturers and stainless-steel medical component manufacturers to name just a few.

It has a small footprint which is useful for a workshop that is tight on space. It also has a flip-top lid, again, making it a compact unit. It has a lower air requirement that the larger machines and runs from 240V power making it suitable for more limited workshops.

The COMET wetblast unit

Typical industry uses include motorcycle and car engines, reconditioning and restoration of metal components and the marine industry.

It is available in 240V or 415 3phase depending on the power available at your workshop making it a very versatile machine indeed. It is one of the most popular machines in our range along with the Mars.

The MARS wetblast unit

Typical industry applications for the Mars machine are engine reconditioners, contract wetblasters, Tool-makers in the plastic and metal extrusion die industry, the aviation and marine industry and many more. Available in 3phase power, able to hold up to 200kg centrally located on the turntable and built tough for a busy workshop environment. One of the most popular in our range along with the Comet above.

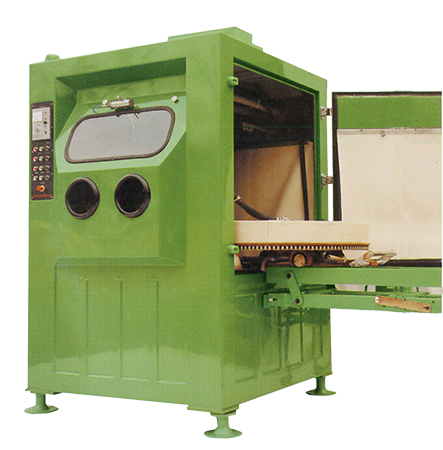

The TITAN wetblast unit

Typical users include high pressure, metal injection industry, defence industry and mining industry. It’s another large machine with either multi-gun semi-automatic features or single gun operation and can hold up to 750kg on the 1200mm turntable. 2 doors and a side-load station make this a useful machine for the big guys.

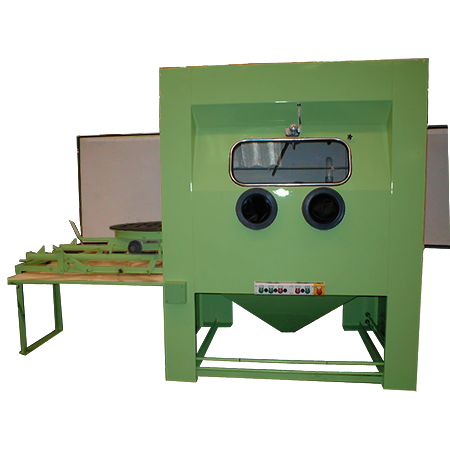

The SATURN wetblast unit

Stainless steel cabinets in 3 sizes up to 1800mm x 1800mm It allows for components weighing 1000kg or more. Two doors and side-load station make loading and unloading easier. They are custom-made and have a wide variety of options available.

Just give Dana-Ridge a call on

1800-806-316 to discuss the possibilities

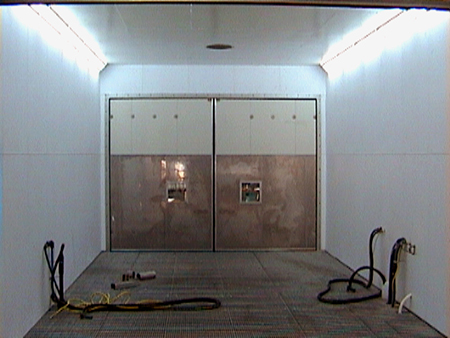

The NEPTUNE wetblast unit

Walk-in setup with typical industry applications that include the stainless-steel industry, defence industry and large food equipment manufacturers. The operator/s suit up just like in a dry-blast room setup. You get all the benefits of the wetblast system without the need for an expensive dust extraction system.

Feature/Model	Mercury	Comet	Mars	Titan	Saturn	Neptune
Cabinet Construction	GRP	GRP	GRP	GRP	Steel	Steel
Internal Cabinet Volume LxWxH	67 x 68 x 62cm	90 x 89 x 73cm	105 x 103 x 92cm	166 x 150 x 108cm	105 x 103 x 92cm	varied to customer needs
Pump size	1.5kW	1.5kW	4kW	5.5-11kW	4-15kW	5.5-15kW
Anti-cavitation feature	No	No	Yes	Yes	Yes	Yes
Sump Capacity	26 Litres	28 Litres	125 Litres	250 Litres	varies with cabinet size 200-276 Litres	Varies with cabinet size 200-580 Litres
Abrasive media capacity	1.5-4 kg	1.5-4 kg	15-26 kg	40-50 kg	40-50 kg	Nom. 50 kg- varies with sump size
Power Requirement	240V	415V or 240V	415V	415V	415V	415V
Multi-gun operation	No	No	Yes	Yes	Yes	Yes
Air requirement (CFM)	15-26	18-30	18-34	34CFM per gun	34CFM per gun	34CFM per gun
Air Connection	1/2″ BSP	1/2″ BSP	1/2″ BSP	1/2-1″ BSP	1/2-1″ BSP	1/2-1″ BSP
Turntable Capacity	50 kg	50 kg	200 kg	750 kg	750-1200kg	N/A
Nom. Turntable diameter	50cm	50cm	70cm	125cm	107cm – 125cm	N/A
Water Connection	1/2″ BSP	1/2″ BSP	1/2″ BSP	1/2″ BSP	1/2″ BSP	1/2″ BSP

See what can be achieved!

After deciding that the wetblast process is they way to go, the next step is to find the machine best suited to your needs. A wide variety of uses, workshop setups and budgets can all influence the choice of cabinet.
Dana-Ridge has a standard range of cabinets that will meet the needs of most applications. In the picture above are just some of the offerings available.
Customised machines can include various levels of automation, different sizing options and automatic rinsing and air-drying of parts.
In order to choose the best setup, it is best to call us on
Australia: 1800 806 316
New Zealand:0800 944 788
By letting us know the application you intend to use the blast machine for, we can advise you on how to get the very best value.
